Industrial Dried Fruit Processing Line for Mango Apple Slices

The fruit drying production line involves several key steps, including raw material processing, pretreatment, drying, and packaging. Each stage necessitates specific equipment to uphold product quality and enhance production efficiency. Here is a breakdown of the process flow and equipment:

Raw Material Processing

Cleaning and Sorting: Raw materials are initially cleaned using a roller washing machine, utilizing high-pressure water flow and brushes to eliminate surface dirt and impurities. For soft fruits, such as bayberries and strawberries, water pressure is maintained at 0.3-0.5MPa to prevent damage, while for harder fruits like kiwis and apples, it can be increased to 0.8MPa.
Sorting Equipment: Equipped with an optical sorter employing CCD cameras to assess color and shape, identifying and eliminating moldy or insect-infested fruits. Color difference parameters are adjusted based on fruit characteristics.
Pretreatment

Slicing/Cutting: Slicers are chosen based on fruit attributes. For instance, serrated blades are recommended for pineapples, with a thickness of 5-8mm for uniform drying.
Peeling and Pitting: Halving machines or pitting knives are used to remove pits. Peeling involves the application of peeling agents or hot alkali solutions, followed by rinsing with water.
Color Protection: Fruit slices undergo immersion in a 1-3% salt solution to prevent oxidation and discoloration.
Drying

Drying Equipment: Air energy dryers or hot air drying equipment are employed, with temperature, humidity, and time controlled via PLC touch screens. The process includes initial low-temperature heating, gradual heating, color fixation, and humidity control.
Drying Process: Materials are dried in a specified temperature range with controlled humidity levels and drying times adjusted according to material thickness and characteristics.
Packaging

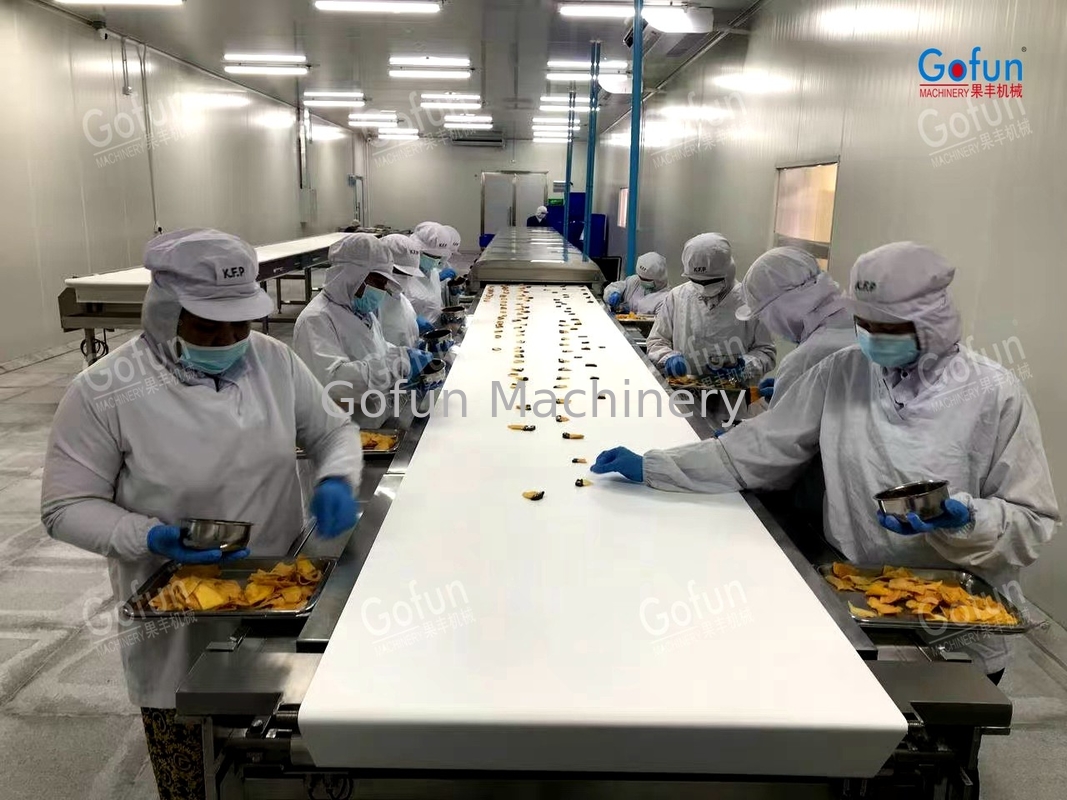

Grading and Packaging: Dried fruits are graded by size and color, then sealed using packaging machines to ensure hygiene and prolong shelf life.
Metal Detection and Coding: Metal detection equipment identifies foreign objects post-packaging, while coding machines mark production dates and batch information.
Additional Functions

Versatility: The production line can produce fruit and vegetable chips and crispy slices, with adaptable equipment configurations to meet diverse requirements.
Automation and Hygiene: Featuring a modular design with high automation levels, the production line incorporates 304 stainless steel components to meet food hygiene standards.

Description

Shanghai Gofun machinery company, a professional dried fruit processing line manufacturer and exporter in China. Which can provide turnkey solution and technical support for dried fruit processing line with different kinds of fruit.

1. Dried mango processing line

2. Dried berry processing line

3. Dried apple / pear  processing line

4. Dried grape processing line

5. Dried peach / apricot / plum processing line

The sought-after product is the dried mango processing line, featuring a comprehensive set of machinery intricately designed to transform fresh mangoes into dried mangoes packaged in aseptic bags. This processing line comprises the fresh mango receiving system, washing system, sorting system, destoning & slicing system, blanching system, sugar melting system, drying system, and packing system. Ultimately, this process culminates in the production of dried mangoes packaged in aseptic bags.

Application

Shanghai Gofun Machinery Company provides a wide range of dried fruit processing lines suitable for various raw materials such as fresh mangoes, berries, apples/pears, grapes, peaches/apricots/plums, and more. The output includes dried mangoes, dried berries, dried apples/pears, dried grapes, dried peaches/apricots/plums, and other dried fruits. The final products can be packaged in aseptic bags, metal cans, sachets, stand-up pouches, PP containers, glass bottles, PET bottles, gable tops, and more.

The dried fruit processing lines from Shanghai Gofun Machinery Company are characterized by high efficiency, water conservation, excellent extraction rates, stringent quality control for the final product, operator safety protocols, and overall safety measures.

Flowchart

Dried Mango Processing Line

FRESH MANGO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ PEELING ⇒ SLICING ⇒ BLANCHING ⇒ SUGAR MELTING ⇒ DRYING ⇒ PACKING

Dried Apple/Pear Processing Line

FRESH APPLE/PEAR ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ PEELING & DESTONING ⇒ SLICING ⇒ BLANCHING ⇒ SUGAR MELTING ⇒ DRYING ⇒ PACKING

Dried Berry Processing Line

FRESH BERRY ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ BLANCHING ⇒ SUGAR MELTING ⇒ DRYING ⇒ PACKING

Dried Peach/Apricot/Plum Processing Line

FRESH PEACH/APRICOT/PLUM ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ DESTONING & SLICING ⇒ BLANCHING ⇒ SUGAR MELTING ⇒ DRYING ⇒ PACKING

Dried Grape Processing Line

FRESH GRAPE ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ STALK REMOVING ⇒ DRYING ⇒ PACKING

Features

• The equipment is divided into three sections, each of which controls the temperature and speed of the material.
• When the material enters another section of equipment, it will be turned over to ensure the uniformity of material drying.
• The inside of the drying chamber is heated by steam to ensure that the moisture of the material is fully evaporated while avoiding the phenomenon of being baked and smashed.
• The steam used in the equipment will be fully utilized and recycled during the production process to ensure unnecessary energy loss.

Our Services

1. Technical support

2. Marketing suggestion

3. Final packing suggestion and design

4. Factory building and design

After-Sales Service

1. Oversea technical support

2. Oversea equipment maintenance

3. English speaking engineers available to provide technique support

Company Information

Shanghai Gofun Machinery Company is a leading manufacturer and exporter of tomato processing lines based in China. We specialize in providing turnkey solutions for various fruit juice, pulp, and paste processing complete lines, offering high-quality and competitively priced production lines with daily capacities ranging from 60 tons to 1500 tons. Our services include plant construction, equipment manufacturing, installation, commissioning, and production, tailored to meet your specific needs and requirements, ensuring the most optimized implementation plan.

In addition to tomato paste production lines, Gofun Company offers turnkey solutions for processing lines for a variety of fruits and vegetables, such as apples, pears, plums, coconuts, mulberries, and more. We have garnered praise from customers both domestically and internationally. Our machines have been successfully exported worldwide, reaching Asian, African, South American, and European countries.
